Feature：
1. High efficiency of solar cells: single crystal 21-22%
2. Bypass diodes can minimize power drop caused by shadows and ensure excellent performance in low light environments.
3.This panel can meet a wide range of applications where standard panel installation is inconvenient, such as curved roofs with airflow.
4. Thanks to advanced polymer materials, the weight of this product is 70% lighter than traditional solar panels, making transportation and installation easy.
5. Almost unnoticed, the flat 100W lightweight panel is only one tenth of an inch tall! This panel is about 95% thinner than rigid panels and is very suitable for stealth solar devices.
Material:
polymer materials+PET+TPT+solar cells

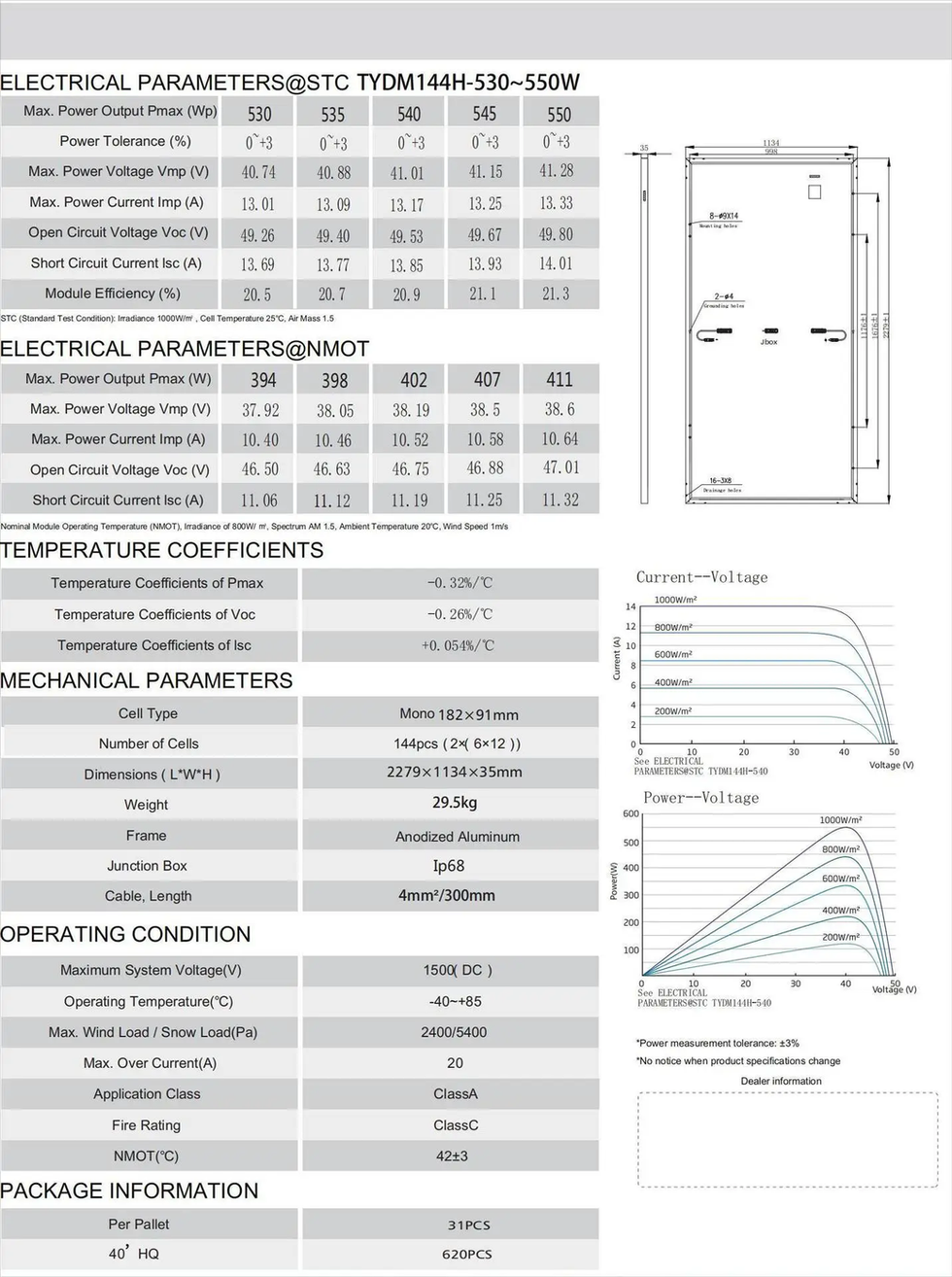

Module Efficiency (%)
21-22%
Solar panels Power
530-550W
Max. Power Voltage Vmp (M)
40-41 Max.
Power Current Imp (A)
13
Open Circuit Voltage Voc (M)
49
Short Circuit Current lsc (A)
13-14
Operating Temperature
-40-+85
Weight
29.5kg
cable longth
4mm/300mm
Expanded Size
2279x1134 x35mm
